Roboturn Cell
| CAPACITY | |
|---|---|
| Swing Over Carriage Covers(mm) | 360 |
| Maximum Turning Dia. (mm) | 260/320 |
| Maximum Turning Length (mm) with Tailstock | 350 |
| MAIN SPINDLE | |
|---|---|
| Spindle Nose (Std) | A2-6 |
| Front Bearing Bore (mm) | 100 |
| Maximum Bar Capacity (Std.) (mm) | 52 |
| TOOL TURRET | |
|---|---|
| No. of Stations (Std.) –Baruffaldi | 8 |
| Tool Cross Section (mm) | 25X25 |
| Max. Boring Bar Dia. | 40 |
| SPINDLE DRIVE | |
|---|---|
| Spindle Motor rated power (KW) | 11/15 |
| Inf. Variable speed range (rpm) | 100-3200 |
| RAPID TRAVERSE | |
|---|---|
| X-Axis(m/min.) | 24 |
| Z-Axis(m/min.) | 24 |
| POSITIONING REPEATABILITY | |
|---|---|
| X-Axis | ± 1.5 Microns |
| Z-axis | ± 2 Microns |
| CNC Controls | |
|---|---|
| SIEMENS 828D(SL)/ FANUC 0i mate TD Weight (approx.) (Kg) | 6000 |
Smart Technologies to TRANSFORM Your Machine Shops!

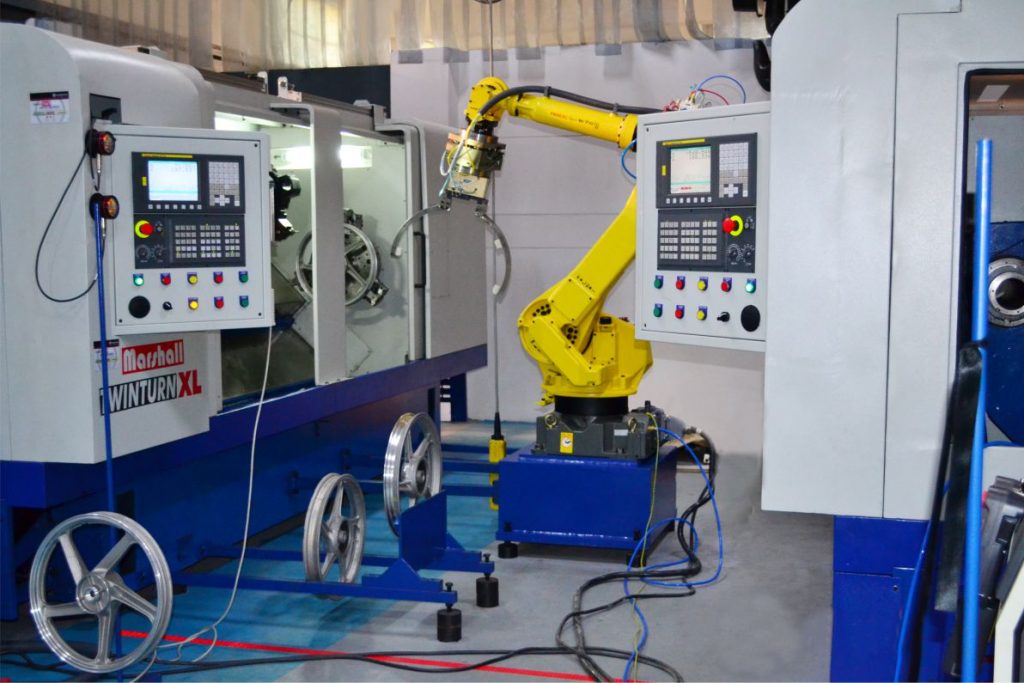

Roboturn XL
| CAPACITY | |
|---|---|
| Swing Over Carriage Covers(mm) | 600 |
| Maximum Turning Dia. (mm) | 550 |
| Maximum Turning Length (mm) without Tailstock | 200 |
| MAIN SPINDLE | |
|---|---|
| Spindle Nose (Std) | A2-11 |
| Front Bearing Bore (mm) | 150 |
| Maximum Bar Capacity (Std.) (mm) | 90 |
| TOOL TURRET | |
|---|---|
| No. of Stations (Std.) –Baruffaldi | 12 |
| Tool Cross Section (mm) | 32X32 |
| Max. Boring Bar Dia. | 50 |
| SPINDLE DRIVE | |
|---|---|
| Spindle Motor rated power (KW) | 18.5/25 |
| Inf. Variable speed range (rpm) | 30-1800 |
| RAPID TRAVERSE | |
|---|---|
| X-Axis(m/min.) | 20 |
| Z-Axis(m/min.) | 20 |
| POSITIONING REPEATABILITY | |
|---|---|
| X-Axis | ± 1.5 Microns |
| Z-axis | ± 2 Microns |
| CNC Controls | |
|---|---|
| SIEMENS 828D (SL)/ FANUC 0i mate TD Weight (approx.) (Kg) | 15000 |
Smart Technologies to TRANSFORM Your Machine Shops!
Robo Turn 6T-8T-12T
| CAPACITY / Model | Twinturn-6T | Twinturn-8T | Twinturn-12T |
|---|---|---|---|
| Swing Over Carriage Covers(mm) | 360 | 360 | 430 |
| Maximum Turning Dia. (mm) | 210 | 260/320 | 400 |
| Maximum Turning Length with Tailstock (mm) | 350 | 350 | – |
| Maximum Turning Length w/o Tailstock (mm) | – | – | 200 |
| MAIN SPINDLE | |||
|---|---|---|---|
| Spindle Nose (Std) | A2-5 | A2-6 | A2-8 |
| Front Bearing Bore (mm) | 85 | 100 | 130 |
| Maximum Bar Capacity (Std.) (mm) | 40 | 52 | 66 |
| SPINDLE DRIVE | |||
|---|---|---|---|
| Spindle Motor rated power (KW) | 7.5/11 | 11/15 | 15/18.5 |
| Inf. Variable speed range (rpm) | 100-4000 | 100-3200 | 50-2500 |
| RAPID TRAVERSE (Standard) | |||
|---|---|---|---|
| X-Axis(m/min.) | 24 | 24 | 20 |
| Z-Axis(m/min.) | 24 | 24 | 20 |
| POSITIONING REPEATABILITY | |||
|---|---|---|---|
| X-Axis | ± 1.5 Microns | ± 1.5 Microns | ± 1.5 Microns |
| Z-axis | ± 2 Microns | ± 2 Microns | ± 2 Microns |
| CNC Controls: SIEMENS 828D(SL)/FANUC 0i mate TD | |||
|---|---|---|---|
| Weight (approx) Kg | 5000 | 6000 | 8000 |
