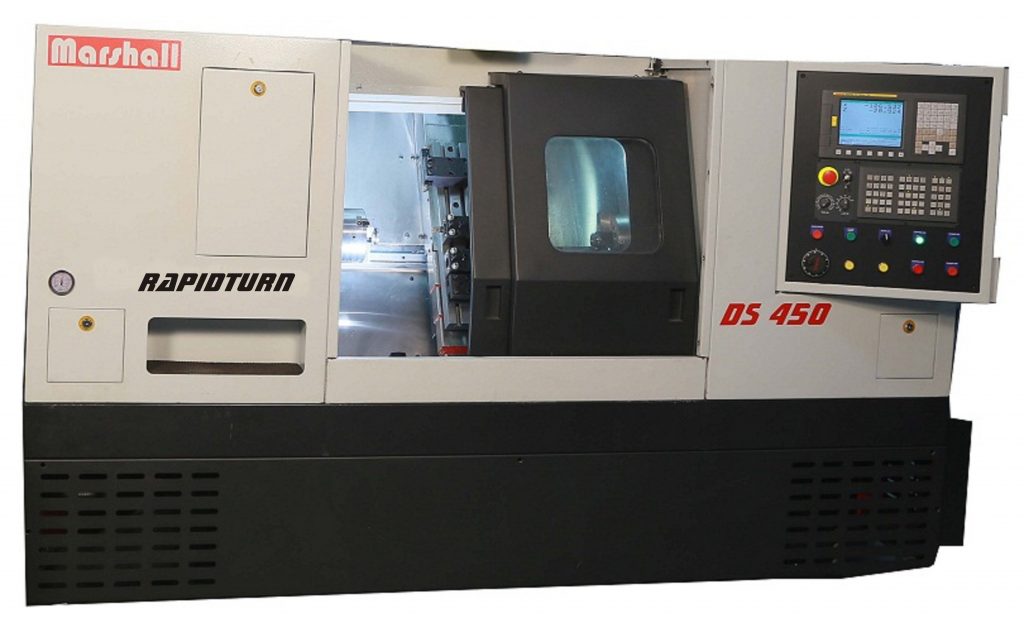

DS-450
| CAPACITY | |
|---|---|
| Swing Over Carriage Covers(mm) | 310 |
| Maximum Turning Dia. (mm) | 200 |
| Maximum Turning Length (mm) | 150 |
| Chuck Size (mm) | 165/200 |
| MAIN SPINDLE | |
|---|---|
| Spindle Nose (Std) | A2-6 |
| Front Bearing Bore (mm) | 100 |
| Maximum Bar Capacity (Std.) (mm) | 52 |
| SPINDLE DRIVE | |
|---|---|
| Spindle Motor rated power (KW) | 7.5/11 |
| Inf. Variable speed range (rpm) | 100-4000 |
| RAPID TRAVERSE | |
|---|---|
| X-Axis(m/min.) | 24 |
| Z-Axis(m/min.) | 24 |
| POSITIONING REPEATABILITY | |
|---|---|
| X-Axis | ± 1.5 Microns |
| Z-axis | ± 2 Microns |
| CNC Controls: SIEMENS 828D(SL)/FANUC 0i mate TD |
|---|
Smart Technologies to TRANSFORM Your Machine Shops!
SL-16 (D)
| CAPACITY | |
|---|---|
| Swing Over Carriage Covers(mm) | 400 |
| Maximum Turning Dia. (mm) | 260 |
| Maximum Turning Length (mm) | 150 |
| Chuck Size (mm) | 200 |
| MAIN SPINDLE | |
|---|---|
| Spindle Nose (Std) | A2-6 |
| Front Bearing Bore (mm) | 100 |
| Maximum Bar Capacity (Std.) (mm) | 52 |
| SPINDLE DRIVE | |
|---|---|
| Spindle Motor rated power (KW) | 7.5/11 |
| Inf. Variable speed range (rpm) | 100-4000 |
| RAPID TRAVERSE | |
|---|---|
| X-Axis(m/min.) | 20 |
| Z-Axis(m/min.) | 20 |
| POSITIONING REPEATABILITY | |
|---|---|
| X-Axis | ± 1.5 Microns |
| Z-axis | ± 2 Microns |
| CNC Controls: SIEMENS 828D(SL)/FANUC 0i mate TD | |
|---|---|
| Weight (approx) Kg | 5000 |
Smart Technologies to TRANSFORM Your Machine Shops!

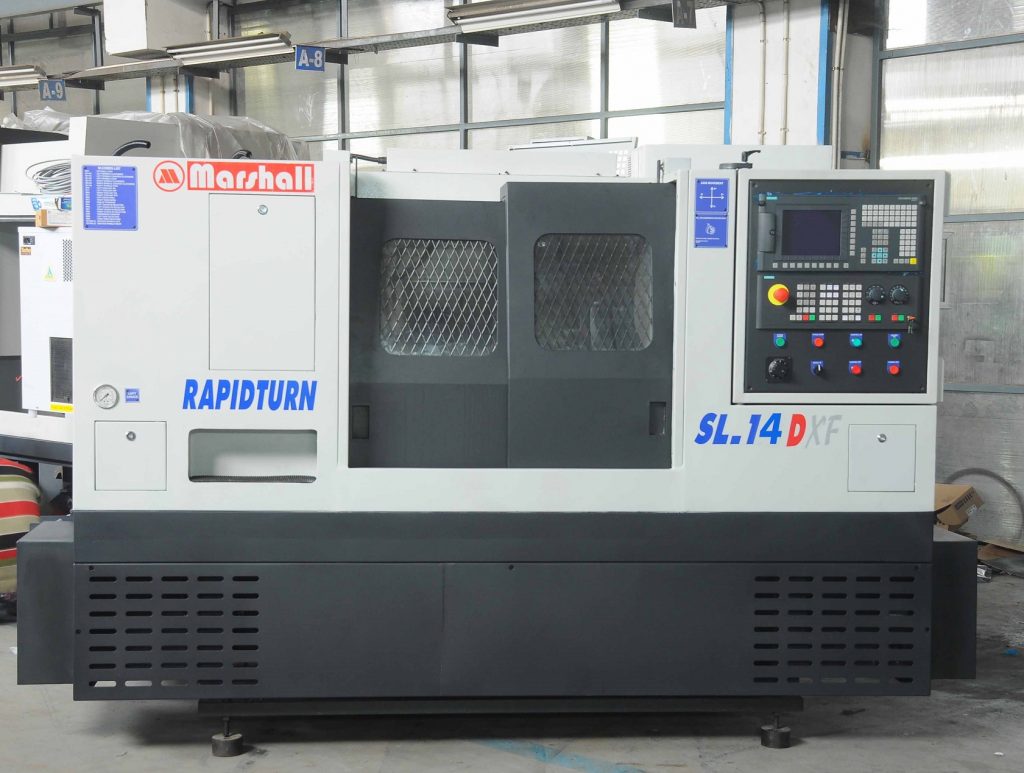

SL-14 (D)
| CAPACITY | |
|---|---|
| Swing Over Carriage Covers(mm) | 400 |
| Maximum Turning Dia. (mm) | 260 |
| Maximum Turning Length (mm) | 150 |
| Chuck Size (mm) | 200 |
| MAIN SPINDLE | |
|---|---|
| Spindle Nose (Std) | A2-6 |
| Front Bearing Bore (mm) | 100 |
| Maximum Bar Capacity (Std.) (mm) | 52 |
| SPINDLE DRIVE | |
|---|---|
| Spindle Motor rated power (KW) | 7.5/11 |
| Inf. Variable speed range (rpm) | 100-4000 |
| RAPID TRAVERSE | |
|---|---|
| X-Axis(m/min.) | 20 |
| Z-Axis(m/min.) | 20 |
| POSITIONING REPEATABILITY | |
|---|---|
| X-Axis | ± 1.5 Microns |
| Z-axis | ± 2 Microns |
| CNC Controls: SIEMENS 828D(SL)/FANUC 0i mate TD | |
|---|---|
| Weight (approx) Kg | 5000 |
Smart Technologies to TRANSFORM Your Machine Shops!

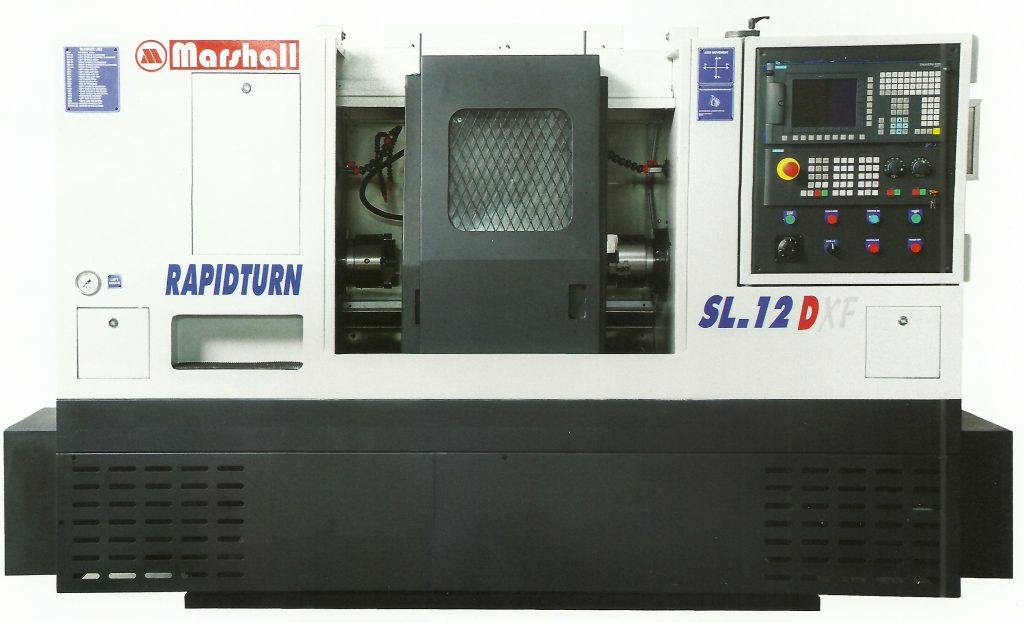

SL-12 (D)
| CAPACITY | |
|---|---|
| Swing Over Carriage Covers(mm) | 360 |
| Maximum Turning Dia. (mm) | 210 |
| Maximum Turning Length (mm) | 125 |
| Chuck Size (mm) | 165 |
| MAIN SPINDLE | |
|---|---|
| Spindle Nose (Std) | A2-5 |
| Front Bearing Bore (mm) | 85 |
| Maximum Bar Capacity (Std.) (mm) | 42 |
| SPINDLE DRIVE | |
|---|---|
| Spindle Motor rated power (KW) | 7.5/11 |
| Inf. Variable speed range (rpm) | 100-4000 |
| RAPID TRAVERSE | |
|---|---|
| X-Axis(m/min.) | 24 |
| Z-Axis(m/min.) | 24 |
| POSITIONING REPEATABILITY | |
|---|---|
| X-Axis | ± 1.5 Microns |
| Z-axis | ± 2 Microns |
| CNC Controls: SIEMENS 828D(SL)/FANUC 0i mate TD | |
|---|---|
| Weight (approx) Kg | 4000 |
Smart Technologies to TRANSFORM Your Machine Shops!
SL-11 (D)
| CAPACITY | |
|---|---|
| Swing Over Carriage Covers(mm) | 310 |
| Maximum Turning Dia. (mm) | 135 |
| Maximum Turning Length (mm) | 100 |
| Chuck Size (mm) | 135 |
| MAIN SPINDLE | |
|---|---|
| Spindle Nose (Std) | A2-4 |
| Front Bearing Bore (mm) | 75 |
| Maximum Bar Capacity (Std.) (mm) | 32 |
| SPINDLE DRIVE | |
|---|---|
| Spindle Motor rated power (KW) | 7.5/5.5 |
| Inf. Variable speed range (rpm) | 100-4500 |
| RAPID TRAVERSE | |
|---|---|
| X-Axis(m/min.) | 24 |
| Z-Axis(m/min.) | 24 |
| POSITIONING REPEATABILITY | |
|---|---|
| X-Axis | ± 2 Microns |
| Z-axis | ± 2 Microns |
| CNC Controls: FANUC 0i mate TD | |
|---|---|
| Weight (approx) Kg | 3600 |
